Description

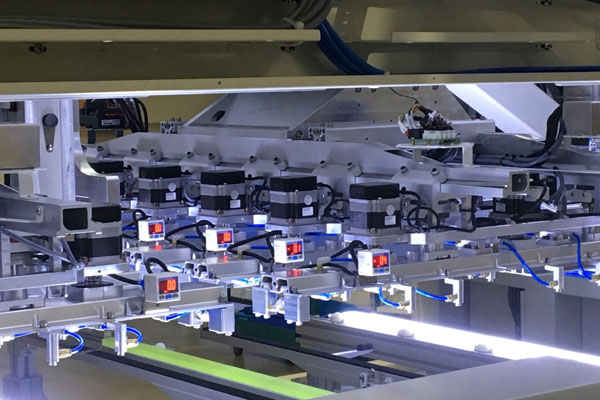

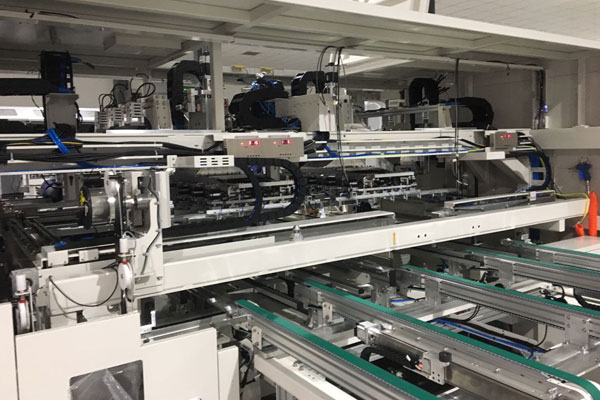

Auto bussing machine is automatic bussing for solar panel production.

Function

The whole machine is compatible with full cell, half cell, double glass modules, compatible with multiple grids after replacing.

Automatically completes cutting, bending and interconnection soldering of solar module.

To effectively rectify cell strings, avoid soldering defects caused by large layup accuracy.

Ribbon roll feeding,automatically prepare upfold L type.

The flux can be automatically filled between the ribbon and busbar before.

Visual correction for cell stringer.

The operating door is equipped with safety protection.

Parameter

1.Cycle time: 18 sec/panel (shielding bypass soldering); 23 sec/panel (opening bypass soldering).
2.Cell Specification: 156mm-220mm (initial configuration according to customer demand);
3.Panel specification:6 strings × 10 half pieces × 2 & 6 strings × 11 half pieces × 2 & 6 strings × 12 half pieces × 2 & 6 strings × 13 half pieces × 2,6 strings × 15 one third pieces × 2,5 strings × 10 half pieces × 2 & 5 strings × 11 half pieces × 2 & 5 strings × 15 one third pieces × 2.
4.Cell space: – 0.5-4mm,String space: 1-6mm.
Compatible with 21xmm 5 series version.
Glass specification: width (980-1500mm) × length (1630-2600mm);
5.Correction accuracy of cell string: ≤± 0.25mm.
6.Power supply: three-phase 380V 50 / 60Hz.
7.Power: peak 30kW; average 20kW.
8.Air: positive pressure 0.6 ~ 0.8MPa,negative pressure about – 70kPa(provided by customer).
