Description

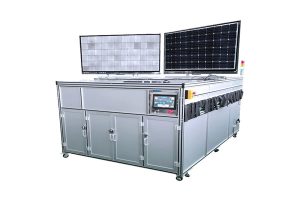

Online Sun simulator is specially used in the electric parameter testing of solar panel on fully automatic solar panel production line.
With auto conveyor system,it has unique apparatus of modifying,to input the compensate parameter,it will carries on automatically/manual temperature compensation and compensate with the light intensity,and automatically measures and modifies the temperature. Based on the Windows operation surface,and humanized-design testing software,it records and displays test curve(I-V curve,P curve) and the test parameter(Voc, Isc,Pm,Im,FF,EFF), the test of sequence number is automatically produced and preserved to the assigned folder.
|
Description |
Parameters | |
|
Model |
AZSMT-AAA |
AZSMT-B |
|
Spectrum range |
Meet IEC60904-9 requirements |
|
|
Radiation intensity |
100mW/cm2 (Adjustment range 70~120mW/cm2) |
|
|
Irradiation uniformity |
≤±2% | ≤±3% |
|
Irradiation instability |
≤±2% |
≤±3% |
| Test results consistency |
≤±1% |
≤±2% |
|
Electrical performance measurement error |
≤±1% |
≤±2% |
|
Single flash time |
0 ~ 100 ms adjustable |
|
|
Effective measure area |
2400x1400mm(Customized) |
|
|
Effective measure range |
10W-650W |
|
|
Measure voltage |
0V～150V (resolution 1mV) |
|
|
Measure current |
0mA～20A (resolution 1mA) |
|
|
Test parameters |
Isc, Voc, Pmax, Vpm, Im, FF, EFF, Temp, Rs, Rsh |
|
|
Data acquisition |
Including 8000 points to collect data |
|
