Description

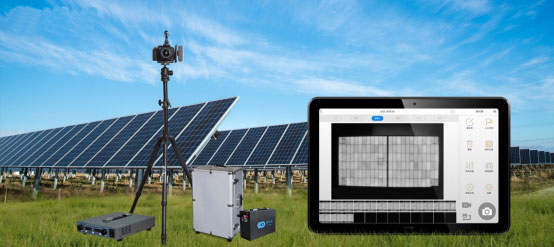

The portable EL detector is a standard testing equipment that focuses on detecting photovoltaic power plants and mobile components. It can accurately detect internal quality issues of photovoltaic solar panels during the day and night, including: grid breakage, hidden cracks, fragments, fragments, virtual soldering,sintered mesh, black core, black edge, mixed range, low efficiency chip,edge etching, PID,attenuation, hot spot attenuation, and other parameters. It is easy to carry and operate.
Detection object:
|
Single component detection |
Component testing on the bracket | Indoor component testing |
|
Outdoor component testing |
Under light component testing |
During day component testing |
| Crystal silicon module testing | Thin film component testing |
CIGS component testing |

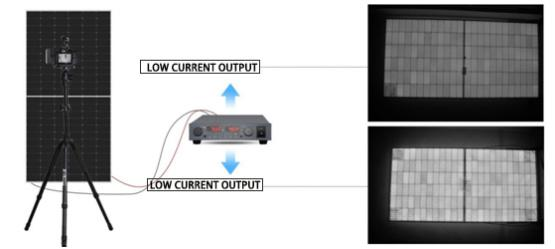

Weak light test:
| High current test | 6-10A High current hidden crack defect test |
| Low current test | 0.1-5A weak current attenuation test (capable of 0.1A detection imaging) |
Advantage
1.Optimal configuration, higher cost-effectiveness
The G series portable EL detector adopts a variety of imported and domestic components,paired with the best cost-effective configuration components,and has a semi imported configuration for the entire machine,providing higher cost-effectiveness and user experience.
2.Full time autofocus

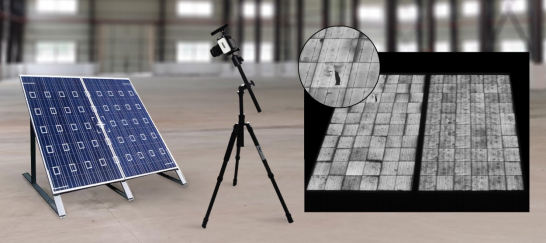

The EL optical module is equipped with a latest generation full time focusing system, which is different from the local clarity of video focusing and infrared light point focusing. It can automatically focus the entire picture in any light and angle, and can achieve full automatic focusing detection in both inclined and dark environments. The full picture clarity and imaging resolution are superior, achieving the ability to shift and shoot without focusing.
