Description
Lab Scale Solar Pv Module Laminator for Perovskite 400*500mm is necessary machine to test new material for future technology of industry with electric heating.
Thanks to faster heating speed and less power consuption,what is more,easier and lower cost of maintenance,it accepts by majority of solar module manufacturer or schools.

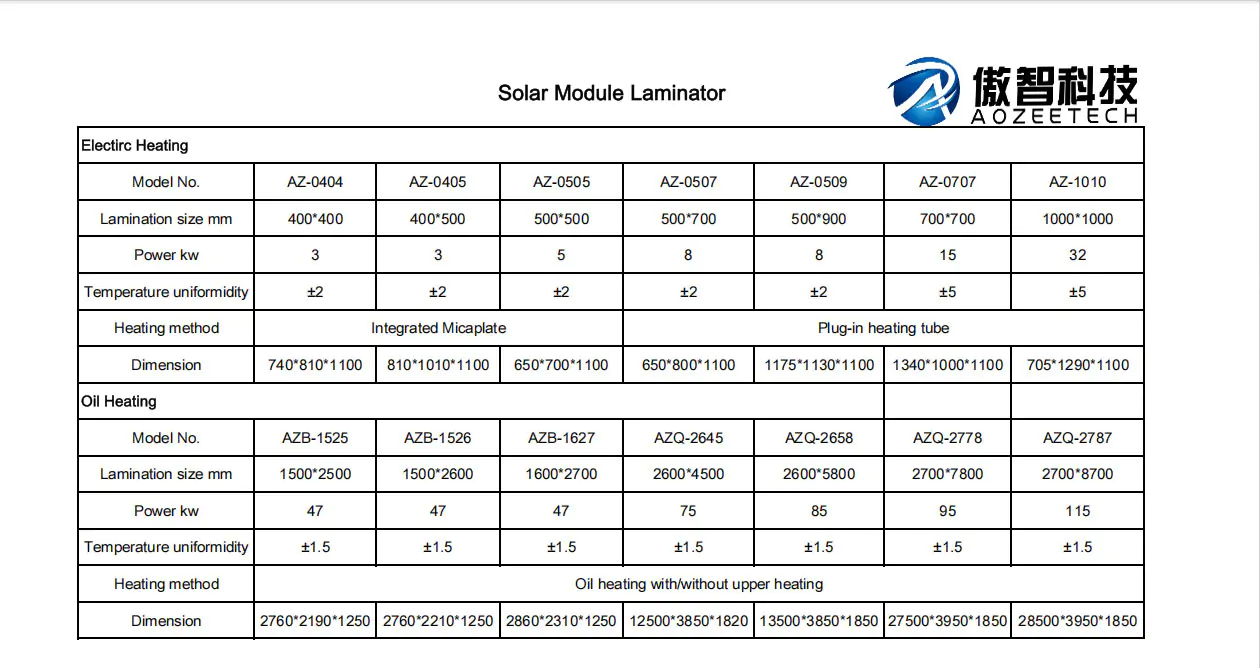

The lamination dimension with electric heating:400*500mm,400*400mm,500*500mm,700*700mm,500*900mm,customized service is available.
|
Model |
AZ-0405 | Laminate Length * Width | 400mm x 500mm
|
|
Dimension |
700×800×1100mm | Weight |
400kg
|
|
Power supply |
380V 3 phase | Peak power |
3 Kw
|
|
Pumping speed |
8L/S | Work power |
1.5 Kw
|
|
Control mode |
Automatic/ Manual | Ultimate vacuum |
20 Pa
|
|
Heating mode |
Electrical heating system | Temperature control mode |
PID Control |
|
Maximum temperature |
180℃ | Temperature uniformity |
±3℃ Multi-point temperature control
|
|
Work temperature |
100℃～160℃ | Controllable temperature precise |
≤±3℃ (at the regulated set temperature value
|
|
Unevenness of the worktable |
Unevenness≤300 μm/m² | Air discharge speed |
Can adjust continuously within 0～50L/S
|
|
Press of compressed air |
0.5～0.8MPa | Laminate time |
about 15min. |
|
Pumping time |
4～5min | Compressed air speed |
1-8L/S |
|
Work vacuum degree |
80～20Pa | Ambient temperature |
0～50℃
|
|
Note: Customized specifications are available upon your requirements. |
|||
