Description

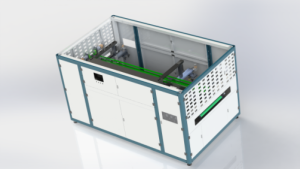

The automatic layup machine by Robot is an automatic layup equipment for solar cell stringers, suitable for 156-210 cells, and compatible with 3-20BB. The equipment adopts various advanced automation technologies such as PLC, servo, robot, and vision to realize automatic typesetting of whole and half battery strings.
| TECHNICAL PARAMETER |
| 1.Cell type: suitable for 156-210 cell, including half cell (4BB-15BB). Changeover time is 1-2 hours. Standard device equipment with debugged half size cell, other forms can be switched on site; |
| 2.Applicable Module:Full size cell: 10 cells*6 strings/12 cells*6 strings. Half size cell:10 cells*12 strings/12 cells*12 strings,20cells*6strings, 24cells*6strings; |
| 3.Applicable glass size: L1630mm-2600mm*W950mm-1450mm; |
| 4.Module transportation height: loading height: 950 ± 30mm,offloading height:980 ± 30mm, Cannot be adjusted separately; |
| 5.Cell strings transportation height: 1220±20mm;Cycle:Full size cell≤60s/module (6 strings),Half size cell≤60s/module(12 strings); |
| 6.Layup accuracy:
Repeat accuracy of strings≤0.8mm strings distance±0.8mm Stings edge to glass edge distance accuracy: ±0.8mm(strings defect from stringer machine not included) |
