Description

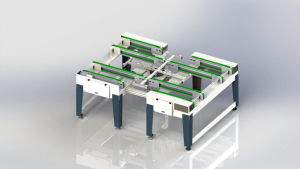

Application:Automatic short side solar frame removing
| Max frame dimension:1450×2530×（25～50）mm | Mini frame dimension:1000×800（25～50）mm |
| Power:hydraulic | Accuracy:5% |
| Long side press:cylinder | Press cylinder:125 Qty:6pieces |
| Compressed air:0.6Mpa～0.7Mpa | Hydraulic pressure:0.3Mpa～12.0Mpa |
| Rated power:1.8Kw 380V/50HZ | Operation:manual |
| Dimension:2560mm×1850mm×1350mm | Weight:1350 Kg |
| Suitable solar panel: 1、125/72(6*12）:1574mm*808mm 2、156/60(6*10）:1650mm*992mm 3、156/72(6*12）:1965mm*992mm 4、158.75/60(6*10）:1967mm*1004mm 5、158.75/72(6*12）:2024mm*1004mm 6、210/50(5*10）:2187mm*1102mm 7、210/66(6*11）:2397mm*1312mm |
|
Application:Manual long side solar frame removing
| Description | Parameter | Description | Parameter |
| Efficiency | 1piece/2mins | ||
| Max frame dimension (mm) | 1450X2530 | Height of working (mm) | 930±50 |
| Mini frame dimenison (mm) | 1000X800 | ||
| Frame height(mm) | 30～50 | Operation mode | Manual |
| Weight(Kg) | 350 | ||
