Description
Polyolefin elastomers (POE) are a range of copolymers based on metallocene catalysis utilizing butene or octene comonomers. Key characteristics of POE’s are their low hardness, low density and high impact/toughness.
With fast develpment of solar renergy technology,POE is attracted by solar module manufacturer,as a proper material to replace EVA,POE material has better anti-PID performance,high resistivity,large water vapor barrier rate,low temperature resistance and yellowing resistance.
Aozeesolar provides small solar module laminator to test POE cross-link degree,by electric heating system and smaller size,it is more convenient to do research in a high efficiency.
Aozeesolar electric heating solar module laminator has 400*400mm,400*500mm,500*500mm,700*700mm,600*800mm,1o00*1000mm.
|
Model |
AZ-0608 | Laminate Length * Width | 600mm x 800mm
|
|
Dimension |
1100×980×1100mm | Weight |
500kg
|
|
Power supply |
380V 3 phase | Peak power |
14Kw
|
|
Pumping speed |
8L/S | Work power |
7Kw
|
|
Control mode |
Automatic/ Manual | Ultimate vacuum |
20 Pa
|
|
Heating mode |
Electrical heating system | Temperature control mode |
PID Control |
|
Maximum temperature |
180℃ | Temperature uniformity |
±3℃ Multi-point temperature control
|
|
Work temperature |
100℃～160℃ | Controllable temperature precise |
≤±3℃ (at the regulated set temperature value
|
|
Unevenness of the worktable |
Unevenness≤300 μm/m² | Air discharge speed |
Can adjust continuously within 0～50L/S
|
|

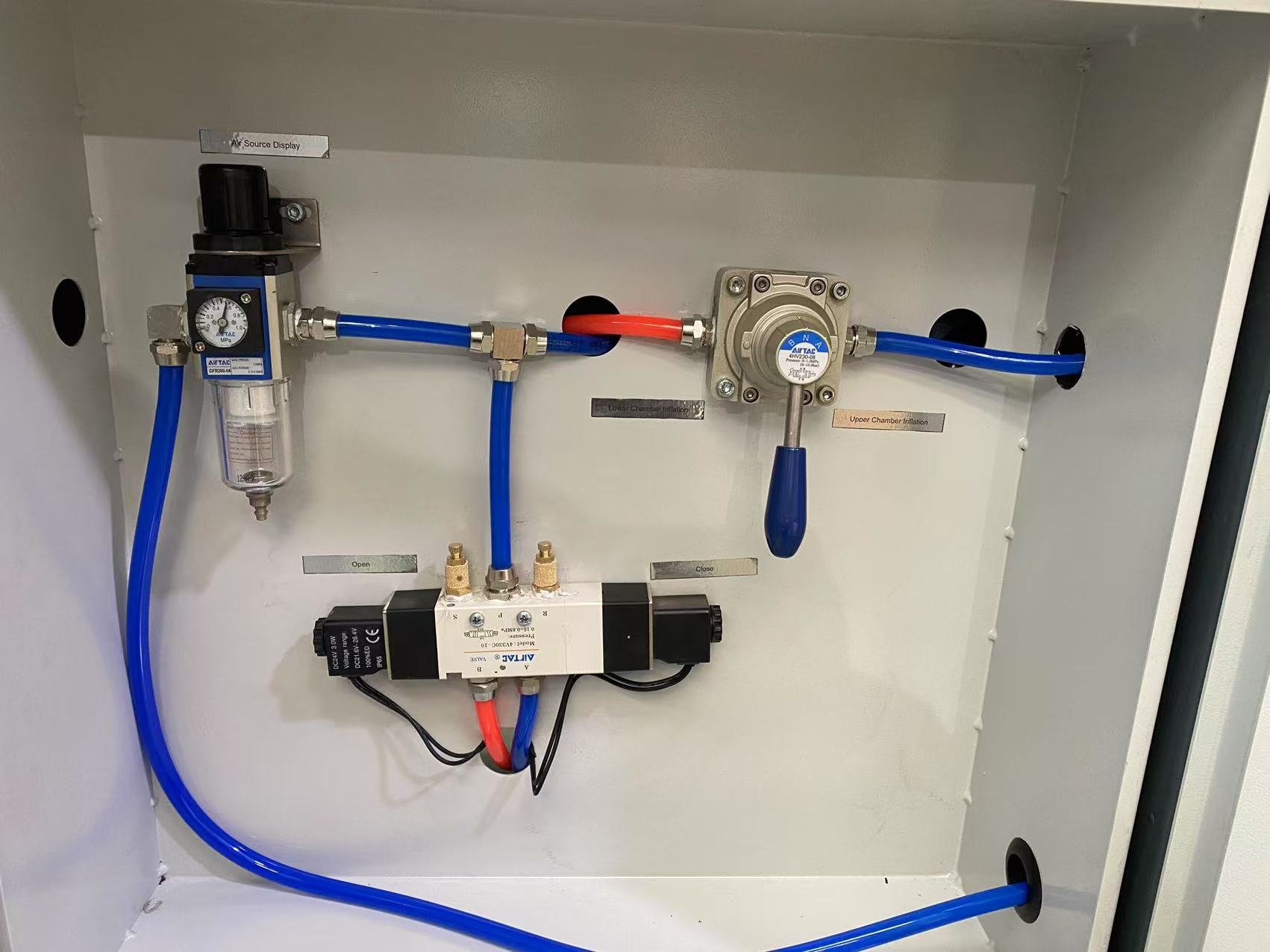

Press of compressed air |
0.5～0.8MPa | Laminate time |
about 15min. |
|
Pumping time |
4～5min | Compressed air speed |
1-8L/S |
|
Work vacuum degree |
80～20Pa | Ambient temperature |
0～50℃
|
|
Note: Customized specifications are available upon your requirements. |
|||
